FLOOR STANDING ENCLOSURES - WD Series

Product Application

FLOOR STANDING ENCLOSURES
Full size mounting plate is generally using MCC panels. The dimensions of mounting plate is 100mm less than outer width 117mm less than outer height of panels. Traditional assembling process is very difficult when mounting plate is fully mounted electrical components. New assembling process is gained assembling easiness and moving range on x-axis with linear rail and carriages. Linear rail is giving assembling flexibility on depth of panels. Mounting plate with carriages are sliding on linear rail and getting a vertical position where claws are into the houses that located on linear rail. When mounting plate is vertical, assembling of mounting plate is completed with four connection parts. Four depth rails are required when mounting plate is located outside of last position of linear rail. After assembling of depth rail, mounting plate can assembles with same ways.

WD SERIES

MATERIAL	FLOOR STANDING MODULAR ENCLOSURE
BODY	SHEET METAL	DC1/DIN EN 10130-99(COLD) DC1
MOUNTING PLATE	GALVANIZED	DIN EN 10142-00 (Zn COATED) DX51DZ
COATING	EPOXY POLYESTER POWDER COATING	RAL 7035-7015
SURFACE TREATMENT	COATING
GASKET	POLYURETAN SEALING FOAM GASKET
PROTECTION CLASS	IP 55

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
WD.4124	400	1200	400	100
WD.4125	400	1200	500	100
WD.4126	400	1200	600	100
WD.5124	500	1200	400	100
WD.5125	500	1200	500	100
WD.5126	500	1200	600	100
WD.5128	500	1200	800	100
WD.6124	600	1200	400	100
WD.6125	600	1200	500	100
WD.6126	600	1200	600	100
WD.6128	600	1200	800	100
WD.7124	700	1200	400	100
WD.7125	700	1200	500	100
WD.7126	700	1200	600	100
WD.7128	700	1200	800	100
WD.8124	800	1200	400	100
WD.8125	800	1200	500	100
WD.8126	800	1200	600	100
WD.8128	800	1200	800	100

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
WD.4164	400	1200	400	100
WD.4165	400	1200	500	100
WD.4166	400	1200	600	100
WD.5164	500	1200	400	100
WD.5165	500	1200	500	100
WD.5166	500	1200	600	100
WD.5168	500	1200	800	100
WD.6164	600	1200	400	100
WD.6165	600	1200	500	100
WD.6166	600	1200	600	100
WD.6168	600	1200	800	100
WD.7164	700	1200	400	100
WD.7165	700	1200	500	100
WD.7166	700	1200	600	100
WD.7168	700	1200	800	100
WD.8164	800	1200	400	100
WD.8166	800	1200	600	100
WD.8168	800	1200	800	100

1pcs panel frame, 1 solid door, 1 pcs solid rear door, 1 pcs solid roof, 1 pcs set of H100mm plinth, 1 pcs rod latch lock and fasteners are included to reference.
* Couple of side panel and mounting plate are optional

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
WD.4184	400	1800	400	100
WD.4185	400	1800	500	100
WD.4186	400	1800	600	100
WD.4188	400	1800	800	100
WD.5184	500	1800	400	100
WD.5185	500	1800	500	100
WD.5186	500	1800	600	100
WD.5188	500	1800	800	100
WD.6184	600	1800	400	100
WD.6185	600	1800	500	100
WD.6186	600	1800	600	100
WD.6188	700	1800	400	100
WD.7185	700	1800	500	100
WD.7186	700	1800	600	100
WD.7188	700	1800	800	100
WD.8184	800	1800	400	100
WD.8185	800	1800	500	100
WD.8186	800	1800	800	100
WD.8188	800	1800	800	100
WD.10184	1000	1800	400	100
WD.10185	1000	1800	500	100
WD.10186	1000	1800	600	100
WD.10185	1000	1800	800	100
WD.12184	1200	1800	400	100
WD.12185	1200	1800	600	100
WD.12188	1200	1800	800	100

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
WD.4204	400	2000	400	100
WD.4205	400	2000	500	100
WD.4206	400	2000	600	100
WD.5204	500	2000	400	100
WD.5205	500	2000	500	100
WD.5206	500	2000	600	100
WD.5208	500	2000	800	100
WD.6204	600	2000	400	100
WD.6205	600	2000	500	100
WD.6206	600	2000	600	100
WD.6208	600	2000	800	100
WD.7204	700	2000	400	100
WD.7205	700	2000	500	100
WD.7206	700	2000	600	100
WD.7208	700	2000	800	100
WD.8204	800	2000	400	100
WD.8205	800	2000	500	100
WD.8206	800	2000	600	100
WD.8208	800	2000	800	100
WD.10204	1000	2000	400	100
WD.10205	1000	2000	500	100
WD.10206	1000	2000	600	100
WD.10208	1000	2000	800	100
WD.12204	1200	2000	400	100
WD.12205	1200	2000	500	100
WD.12206	1200	2000	600	100
WD.12208	1200	2000	800	100

1 pcs panel frame, 1 pcs solid door, 1 pcs solid rear door, 1 pcs solid roof, 1 pcs set of H100mm plinth, 1 pcs rod latch lock and fasteners are included to reference. * Couple of side panel and mounting plate are optional.

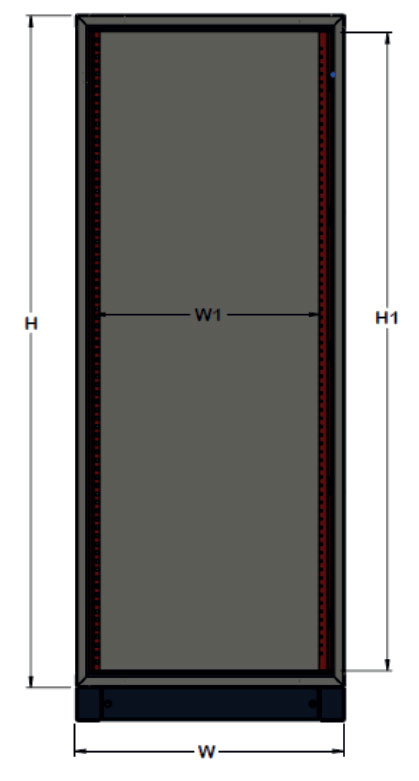

WD. SERIES FULL SIZE MOUNTING PLATE

REFERENCE	W	H	W1	H1
WD.TMP.412	400	1200	285	1080
WD.TMP.512	500	1200	385	1080
WD.TMP.612	600	1200	485	1080
WD.TMP.712	700	1200	585	1080
WD.TMP.812	800	1200	685	1080
WD.TMP.416	400	1600	285	1480
WD.TMP.516	500	1600	385	1480
WD.TMP.616	600	1600	485	1480
WD.TMP.716	700	1600	585	1480
WD.TMP.816	800	1600	685	1480
WD.TMP.418	400	1800	285	1680
WD.TMP.518	500	1800	385	1680
WD.TMP.618	600	1800	485	1680
WD.TMP.718	700	1800	585	1680
WD.TMP.818	800	1800	685	1680
WD.TMP.1018	1000	1800	885	1680
WD.TMP.1218	1200	1800	1085	1680
WD.TMP.420	400	2000	285	1880
WD.TMP.520	500	2000	385	1880
WD.TMP.620	600	2000	485	1880
WD.TMP.720	700	2000	585	1880
WD.TMP.820	800	2000	685	1880
WD.TMP.1020	1000	2000	885	1880
WD.TMP.1220	1200	2000	1085	1880

1 pcs mounting plate, 2 pcs sliding skates, 4 pcs mounting brackets and fateners are included to reference.
* When mounting plate is located middle of the panels, 4 pcs depth rail is needed.
* Mounting plate is moving on the couple of depth sliding rail and when mounting plate is vertical, claws are into the holes for fixing.

WD. SERIES MOUNTING PLATE ADAPTER PART

REFERENCE	H	H1	W1
WD.MAP.12	1200	1036	110
WD.MAP.16	1600	1436	110
WD.MAP.18	1800	1636	110
WD.MAP.20	2000	1836	110

1 pcs mounting plate, adaptor mounting plate, four cage nuts fasteners are included to reference.

WD. SERIES SIDE PANEL

REFERENCE	H	D	H2	H1
WD.YK.412	1200	400	1118	318
WD.YK.416	1600	400	1518	318
WD.YK.418	1800	400	1718	318
WD.YK.420	2000	400	1918	318
WD.YK.512	1200	500	1118	418
WD.YK.516	1600	500	1518	418
WD.YK.518	1800	500	1718	418
WD.YK.520	2000	500	1918	418
WD.YK.612	1200	600	1118	518
WD.YK.616	1600	600	1518	518
WD.YK.618	1800	600	1718	518
WD.YK.620	2000	600	1918	518
WD.YK.818	1800	800	1718	718
WD.YK.820	2000	800	1918	718

2 pcs side panels and fasteners are included to reference.

WD. SERIES SOLID FRONT DOOR

REFERENCE	W	H	W1	H1
WD.KP.412	400	1200	201,25	1025,25
WD.KP.416	400	1600	201,25	1425,25
WD.KP.418	400	1600	201,25	1425,25
WD.KP.420	400	1600	201,25	1425,25
WD.KP.512	500	1200	301,25	1025,25
WD.KP.516	500	1600	301,25	1425,25
WD.KP.518	500	1800	301,25	1625,25
WD.KP.520	500	2000	301,25	1825,25
WD.KP.612	600	1200	401,25	1025,25
WD.KP.616	600	1600	401,25	1425,25
WD.KP.618	600	1800	401,25	1625,25
WD.KP.620	600	2000	401,25	1825,25
WD.KP.718	700	1800	501,25	1625,25
WD.KP.720	700	2000	501,25	1825,25
WD.KP.816	800	1800	601,25	1625,25
WD.KP.818	800	1800	601,25	1625,25
WD.KP.820	800	2000	601,25	1825,25
WD.KP.1018	1000	2000	801,25	1825,25
WD.KP.1020	1000	2000	801,25	1825,25
WD.KP.1220	1000	2000	1001,25	1825,25

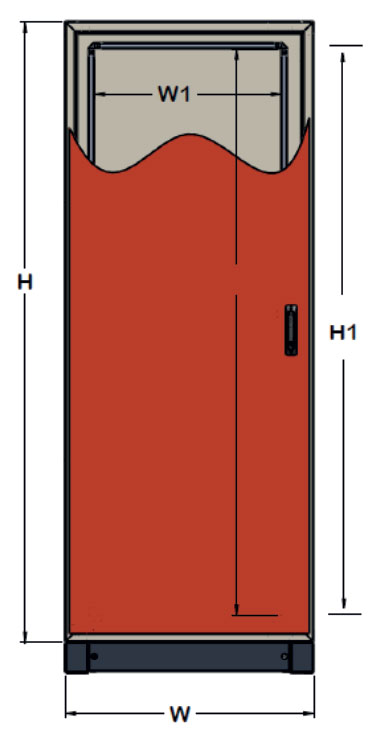

WD. SERIES GLAZED DOOR

REFERENCE	W	H	W1	W2	H1
WD.CK.412	400	1200	201,25	165	1025,25
WD.CK.416	400	1600	201,25	165	1425,25
WD.CK.418	400	1800	201,25	165	1625,25
WD.CK.420	400	1800	201,25	165	1625,25
WD.CK.512	500	1200	301,25	265	1025,25
WD.CK.516	500	1600	301,25	265	1425,25
WD.CK.518	500	1800	301,25	265	1625,25
WD.CK.520	500	2000	301,25	265	1825,25
WD.CK.612	600	1200	401,25	365	1025,25
WD.CK.616	600	1600	401,25	365	1425,25
WD.CK.618	600	1800	401,25	365	1625,25
WD.CK.620	600	2000	401,25	365	1825,25
WD.CK.718	700	1800	501,25	465	1625,25
WD.CK.720	700	2000	501,25	465	1825,25
WD.CK.816	800	1800	601,25	565	1625,25
WD.CK.818	800	1800	601,25	565	1825,25
WD.CK.820	800	2000	601,25	565	1825,25
WD.CK.1018	1000	2000	801,25	765	1825,25
WD.CK.1020	1000	2000	801,25	765	1825,25
WD.CK.1220	1200	2000	1001,25	965	1825,25

WD. SERIES MODULAR PLINTH WIDTH PROFILE

REFERENCE	W	W1	H1
WD.BZ1.4G	400	250	100
WD.BZ1.5G	500	350	100
WD.BZ1.6G	600	450	100
WD.BZ1.7G	600	450	100
WD.BZ1.8G	800	650	100
WD.BZ1.10G	1000	850	100
WD.BZ1.12G	1200	1050	100
WD.BZ2.4G	400	250	200
WD.BZ2.5G	500	350	200
WD.BZ2.6G	600	450	200
WD.BZ2.7G	700	550	200
WD.BZ2.8G	800	650	200
WD.BZ2.10G	1000	850	200
WD.BZ2.12G	1200	1050	200

2pcs width profiles of plinth and fasteners are included to reference.

WD. SERIES MODULAR PLINTH DEPTH PROFILE

REFERENCE	H1	D1
WD.BZ1.4D	100	400
WD.BZ1.5D	100	500
WD.BZ1.6D	100	600
WD.BZ1.8D	100	800
WD.BZ2.4D	200	400
WD.BZ2.5D	200	500
WD.BZ2.6D	200	600
WD.BZ2.8D	200	800

2 pcs depth profiles of plinth and fasteners are includede to reference.

WD. SERIES CABLE HOLDER PROFILE

REFERENCE	W	W1
W.KSP.4G	400	202
W.KSP.5G	500	302
W.KSP.6G	600	402
W.KSP.7G	700	502
W.KSP.8G	800	602
W.KSP.10G	1000	802
W.KSP.12G	1200	1002

1 pcs cable holder profile and fasteners are included to reference.

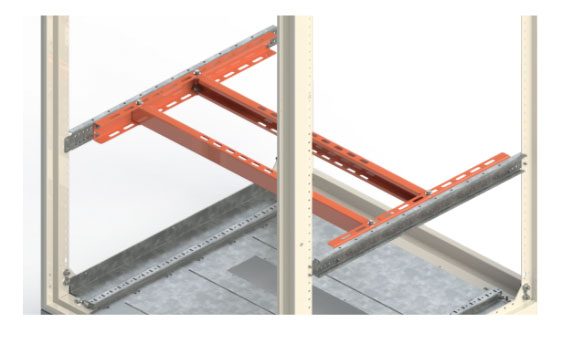

WD. SERIES AIR CIRCUIT BREAKER MOUNTING KIT

REFERENCE	W	D	W1	D1
WD.ATS.500G	500	*	433	*
WD.ATS.600G	600	*	533	*
WD.ATS.700G	700	*	633	*
WD.ATS.800G	800	*	733	*
WD.ATS.1000G	1000	*	933	*
WD.ATS.1200G	1200	*	1133	*
WD.ATS.500D	*	500	*	252,5
WD.ATS.600D	*	600	*	352,5
WD.ATS.800D	*	800	*	552,5

2 pcs depth rail and two width rail of heavy equipment kit, 2pcs depth rail and fasteners are included to reference.

WD. SERIES VERTICAL PROFILE OF INTERNAL PLATES

REFERENCE	W	H	W1	H1
WD.İKD.12	*	1200	*	1100
WD.İKD.16	400	1600	330	1500
WD.İKD.18	500	1800	430	1700
WD.İKD.20	600	2000	530	1900
WD.İKD.12M	700	1200	630	1100
WD.İKD.16M	800	1600	730	1500
WD.İKD.18M	1000	1800	930	1700
WD.İKD.20M	*	2000	*	1900

2 pcs vertical profile of internal plate and fasteners are included to reference.

WD. SERIES FULL SIZE INTERNAL PLATE

REFERENCE	W	H	W1	H1
WD.M.TDK.4012	400	1200	348	1100
WD.M.TDK.4012	400	1600	348	1500
WD.M.TDK.4018	400	1800	348	1700
WD.M.TDK.4020	400	2000	348	1900
WD.M.TDK.5012	500	1200	448	1100
WD.M.TDK.5016	500	1600	448	1500
WD.M.TDK.5018	500	1800	448	1700
WD.M.TDK.5020	500	2000	448	1900
WD.M.TDK.6012	600	1200	548	1100
WD.M.TDK.6016	600	1600	548	1500
WD.M.TDK.6018	600	1800	548	1700
WD.M.TDK.6020	600	2000	548	1900
WD.M.TDK.7012	700	1200	648	1100
WD.M.TDK.7016	700	1600	648	1500
WD.M.TDK.7018	700	1800	648	1700
WD.M.TDK.7020	700	2000	648	1900
WD.M.TDK.8012	800	1200	748	1100
WD.M.TDK.8016	800	1600	748	1500
WD.M.TDK.8018	800	1800	748	1700
WD.M.TDK.8020	800	2000	748	1900
WD.M.TDK.1012	1000	1200	948	1100
WD.M.TDK.1016	1000	1600	948	1500
WD.M.TDK.1018	1000	1800	948	1700
WD.M.TDK.1020	1000	2000	948	1900

1pcs totally closed internal plate, hinges, 2 pcs quarter turn-wing knob locks and fasteners are included to reference. For the height of 1200mm, 3 pcs hinges are included to reference.

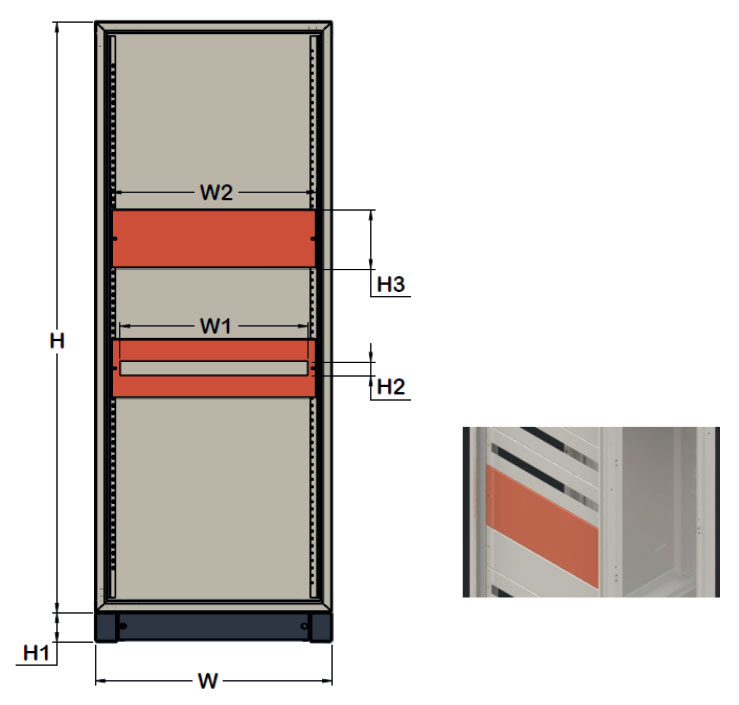

WD. SERIES FULL SIZE INTERNAL PLATE

REFERENCE	W	W1	W2	H2	H3
WD.M.PDK.4200	400	*	290	47	195
WD.M.PDK.4300	400	*	290	47	295
WD.M.PDK.4400	400	*	290	47	395
WD.M.PDK.5200	500	*	390	47	195
WD.M.PDK.5300	500	*	390	47	295
WD.M.PDK.5400	500	*	390	47	395
WD.M.PDK.6200	600	*	490	47	195
WD.M.PDK.6300	600	*	490	47	295
WD.M.PDK.6400	600	*	490	47	395
WD.M.PDK.7200	700	*	590	47	195
WD.M.PDK.7300	700	*	590	47	295
WD.M.PDK.7400	700	*	590	47	395
WD.M.PDK.8200	800	*	690	47	195
WD.M.PDK.8300	800	*	690	47	295
WD.M.PDK.8400	800	*	690	47	395
WD.M.PDK.1200	1000	*	890	47	195
WD.M.PDK.1300	1000	*	890	47	295
WD.M.PDK.1400	1000	*	890	47	395

1 pcs totally closed internal plate, hinges, 2 pcs quarter turn-wing knob locks and fasteners are included to reference. For the height of 1200 mm, 3 pcs hinges are included to reference.

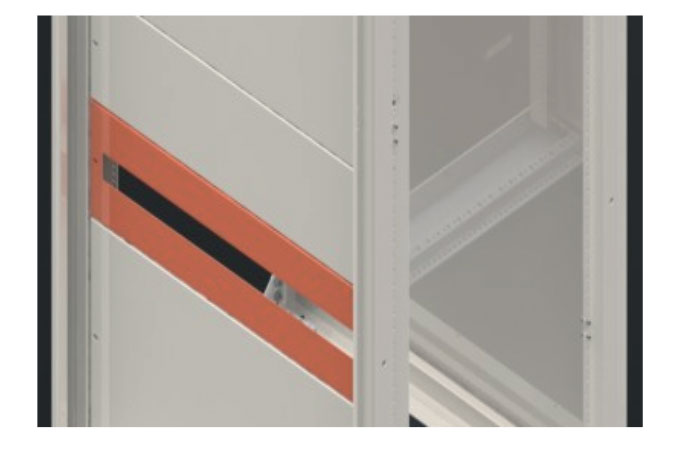

WD. SERIES PARTIAL W-AUTOMAT INTERNAL PLATE

REFERENCE	W	W1	W2	H2	H3
WD.M.PWK.4200	400	235	290	47	195
WD.M.PWK.5200	500	335	290	47	195
WD.M.PWK.6200	600	435	290	47	195
WD.M.PWK.7200	700	535	590	47	195
WD.M.PWK.8200	800	635	690	47	195
WD.M.PWK.1200	1000	835	890	47	195

1 pcs w-automat internal plate, 2 pcs M6x30 bolts with plastic head, 2 pcs M6 cage nuts and fasteners are included to reference

WD. SERIES SOLID INTERNAL PLATE

REFERENCE	W	W1	H2
WD.M.PMP.4075	400	330	68
WD.M.PMP.4100	400	330	93
WD.M.PMP.4150	400	330	143
WD.M.PMP.4200	400	330	193
WD.M.PMP.4300	400	330	293
WD.M.PMP.5075	500	430	68
WD.M.PMP.5100	500	430	93
WD.M.PMP.5150	500	430	143
WD.M.PMP.5200	500	430	193
WD.M.PMP.5300	500	430	293
WD.M.PMP.6075	600	530	68
WD.M.PMP.6100	600	530	93
WD.M.PMP.6150	600	530	143
WD.M.PMP.6200	600	530	193
WD.M.PMP.6300	600	530	293
WD.M.PMP.7075	700	630	68
WD.M.PMP.7100	700	630	93
WD.M.PMP.7150	700	630	143
WD.M.PMP.7200	700	630	193
WD.M.PMP.7300	700	630	293
WD.M.PMP.8075	800	730	68
WD.M.PMP.8100	800	730	93
WD.M.PMP.8150	800	730	143
WD.M.PMP.8200	800	730	193
WD.M.PMP.8300	800	730	293
WD.M.PMP.1075	1000	930	68
WD.M.PMP.1100	1000	930	93
WD.M.PMP.1150	1000	930	143
WD.M.PMP.1200	1000	930	193
WD.M.PMP.1300	1000	930	293

1 pcs partial mounting plate and fasteners are included to reference.
* For mounting vertical and depth mounting rail is needed and these are optional. * For 75 and 100 mm height of mounting plate, 2 pcs depth profiles and 2 pcs mounting part is enough.

WD. SERIES MOUNTING DEPTH PROFILE

REFERENCE	D	D1	H1
WD.DA.4D	400	275	45,5
WD.DA.5D	500	375	45,5
WD.DA.6D	600	475	45,5
WD.DA.8D	800	675	45,5

2pcs depth rails and fasteners are included to reference

WD. SERIES BUSBAR SUPPORT SET

WD. SERIES TERMINAL RAILS MOUNTING PROFILE

WD. SERIES TERMINAL RAILS MOUNTING PART

CALL US

FLOOR STANDING ENCLOSURES – WD Series

Product Application

WD SERIES

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

WD. SERIES FLOOR STANDING MODULAR ENCLOSURE

WD. SERIES FULL SIZE MOUNTING PLATE

WD. SERIES MOUNTING PLATE ADAPTER PART

WD. SERIES SIDE PANEL

WD. SERIES SOLID FRONT DOOR

WD. SERIES GLAZED DOOR

WD. SERIES MODULAR PLINTH WIDTH PROFILE

WD. SERIES MODULAR PLINTH DEPTH PROFILE

WD. SERIES CABLE HOLDER PROFILE

WD. SERIES AIR CIRCUIT BREAKER MOUNTING KIT

WD. SERIES VERTICAL PROFILE OF INTERNAL PLATES

WD. SERIES FULL SIZE INTERNAL PLATE

WD. SERIES FULL SIZE INTERNAL PLATE

WD. SERIES PARTIAL W-AUTOMAT INTERNAL PLATE

WD. SERIES SOLID INTERNAL PLATE

WD. SERIES MOUNTING DEPTH PROFILE

WD. SERIES BUSBAR SUPPORT SET

WD. SERIES TERMINAL RAILS MOUNTING PROFILE

WD. SERIES TERMINAL RAILS MOUNTING PART

Related posts

FLOOR STANDING ENCLOSURES – PHI Series
