Product Application
Outdoor cabinets is produced for working on outdoor environment. Galvanized sheet metal is used for all parts of outdoor cabinets. Outdoor cabinets is produced with three inner optons that panel with mounting plate, with 19” rack system and with internal lid. Outdoor cabinet has body, gland plate, 100 mm height plinth and outdoor roof in standart model. Full size mounting plate, self mounting plate, 19” profiles, internal lids, outdoor filter cover, 200 and 300 mm height plinth are optional accessories.
WH. SERIES TERMINAL BOX
MATERIAL | TERMINAL BOX | |
---|---|---|
BODY | GALVANIZED | DIN EN 10130-99 (Soğuk) |
MOUNTING PLATE | GALVANIZED | DIN EN 10130-99 (Soğuk) |
COATING | EPOXY POLYESTER POWDER COATING | RAL 7035 |
SURFACE TREATMENT | COATING | |
GASKET | POLYURETHANE SEALING FOAM GASKET | |
PROTECTION CLASS | IP 66 |
WH. SERIES OUTDOOR ENCLOSURE
REFERENCE | REFERENCE | W | H | D | H1 |
---|---|---|---|---|---|
WH.6124 | 600x1200x400 | 600 | 1200 | 400 | 100 |
WH.6126 | 600x1200x600 | 600 | 1200 | 600 | 100 |
WH.6128 | 600x1200x800 | 600 | 1200 | 800 | 100 |
WH.6164 | 600x1600x400 | 600 | 1600 | 400 | 100 |
WH.6166 | 600x1600x600 | 600 | 1600 | 600 | 100 |
WH.6168 | 600x1600x800 | 600 | 1600 | 800 | 100 |
WH.6194 | 600x1900x800 | 600 | 1900 | 400 | 100 |
WH.6196 | 600x1900x600 | 600 | 1900 | 600 | 100 |
WH.6198 | 600x1900x800 | 600 | 1900 | 800 | 100 |
WH.8124 | 800x1200x400 | 800 | 1200 | 400 | 100 |
WH.8126 | 800x1200x600 | 800 | 1200 | 600 | 100 |
WH.8128 | 800x1200x800 | 800 | 1200 | 800 | 100 |
WH.8164 | 800x1600x400 | 800 | 1600 | 400 | 100 |
WH.8166 | 800x1600x600 | 800 | 1600 | 600 | 100 |
WH.8168 | 800x1600x800 | 800 | 1600 | 800 | 100 |
WH.8194 | 800x1900x400 | 800 | 1900 | 400 | 100 |
WH.8196 | 800x1900x600 | 800 | 1900 | 600 | 100 |
WH.8198 | 800x1900x800 | 800 | 1900 | 800 | 100 |
WH.12124 | 1200x1200x400 | 1200 | 1200 | 400 | 100 |
WH.12126 | 1200x1200x600 | 1200 | 1200 | 600 | 100 |
WH.12128 | 1200x1200x800 | 1200 | 1200 | 800 | 100 |
WH.12164 | 1200x1600x400 | 1200 | 1600 | 400 | 100 |
WH.12166 | 1200x1600x600 | 1200 | 1600 | 600 | 100 |
WH.12168 | 1200x1600x800 | 1200 | 1600 | 800 | 100 |
WH.12194 | 1200x1900x400 | 1200 | 1900 | 400 | 100 |
WH.12196 | 1200x1900x600 | 1200 | 1900 | 600 | 100 |
WH.12198 | 1200x1900x800 | 1200 | 1900 | 800 | 100 |
1 pcs frame, 1 frame solid fornt door, 1 pcs rear solid dorr, 1 pcs outdoor type roof, 1pcs set of 100 mm height plinth, 1 pcs gland plate and fasteners are included to reference.
* Mounting plate and other accessories are optinal.
WH. SERIES AREA OF USAGE OF MOUNTING PLATE
REFERENCE | W | H | W1 | H1 |
---|---|---|---|---|
WH.MP.6012 | 600 | 1200 | 484,5 | 1075,5 |
WH.MP.6016 | 600 | 1600 | 484,5 | 1475,5 |
WH.MP.6019 | 600 | 1900 | 484,5 | 1775,5 |
WH.MP.8012 | 800 | 1200 | 684,5 | 1075,5 |
WH.MP.8016 | 800 | 1600 | 684,5 | 1475,5 |
WH.MP.8019 | 800 | 1900 | 684,5 | 1775,5 |
WH.MP.1212 | 1200 | 1200 | 1084,5 | 1075,5 |
WH.MP.1216 | 1200 | 1600 | 1084,5 | 1475,5 |
WH.MP.1219 | 1200 | 1900 | 1084,5 | 1775,5 |
1 pcs mounting plate, 4 pcs depth profiles with silding slot and fasteners are included to reference.
WH. SERIES AREA OF USAGE OF 19'' RACK PROFILE
REFERENCE | W | H | W1 | H1 |
---|---|---|---|---|
WH.19P.6012 | 600 | 1200 | 464 | 1140 |
WH.19P.616 | 600 | 1600 | 464 | 1540 |
WH.19P.619 | 600 | 1900 | 464 | 1840 |
WH.19P.812 | 800 | 1200 | 664 | 1140 |
WH.19P.816 | 800 | 1600 | 664 | 1540 |
WH.19P.819 | 800 | 1900 | 664 | 1840 |
WH.19P.1212 | 1200 | 1200 | 1064 | 1140 |
WH.19P.1216 | 1200 | 1600 | 1064 | 1540 |
WH.19P.1219 | 1200 | 1900 | 1064 | 1840 |
2 pcs 19'' vertical mounting profilles are included to reference.
WH. SERIES AREA OF USAGE OF SOLID INTERNAL PLATE
REFERENCE | W | W1 | H1 |
---|---|---|---|
WH.PDK.200 | 600 | 484 | 195 |
WH.PDK.300 | 600 | 484 | 295 |
WH.PDK.400 | 600 | 484 | 395 |
WH.PDK.200 | 800 | 684 | 195 |
WH.PDK.300 | 800 | 684 | 295 |
WH.PDK.400 | 800 | 684 | 395 |
WH.PDK.200 | 1200 | 1084 | 195 |
WH.PDK.300 | 1200 | 1084 | 295 |
WH.PDK.400 | 1200 | 1084 | 395 |
WH. SERIES DIMENSION OF MODULAR PLINTH WIDTH PROFILE
REFERENCE | W | W1 | H1 |
---|---|---|---|
WH.BZ1.4D | 100 | 400 | 400 |
WH.BZ1.6D | 100 | 600 | 600 |
WH.BZ1.8D | 100 | 800 | 800 |
WH.BZ2.6D | 200 | 600 | 600 |
WH.BZ2.8D | 200 | 800 | 800 |
WH.BZ3.4D | 300 | 400 | 400 |
WH.BZ3.6D | 300 | 600 | 600 |
WH.BZ3.8D | 300 | 800 | 800 |
WH. SERIES DIMENSION OF MODULAR PLINTH DEPTH PROFILE
REFERENCE | W | W1 | H1 |
---|---|---|---|
WH.BZ1.6G | 100 | 600 | 450 |
WH.BZ1.8G | 100 | 800 | 650 |
WH.BZ1.12G | 100 | 1200 | 1050 |
WH.BZ2.6G | 200 | 600 | 450 |
WH.BZ2.8G | 200 | 800 | 650 |
WH.BZ2.12G | 200 | 1200 | 1050 |

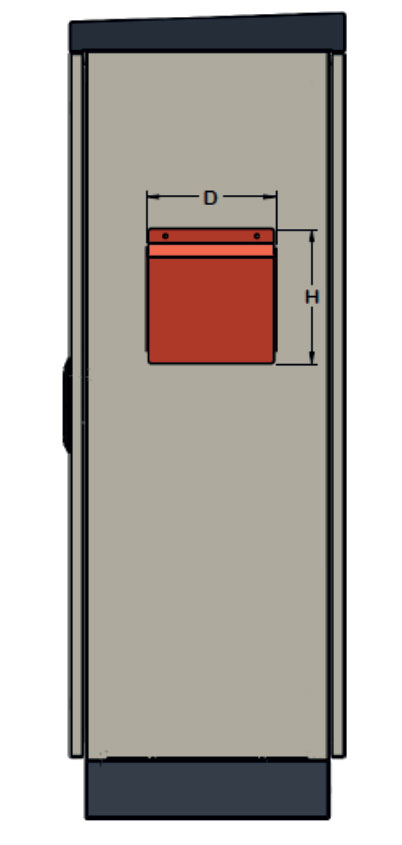

WH. SERIES OUTDOOR FILTER COVER
REFERENCE | W | H | D1 |
---|---|---|---|
WH.HFK.1515 | 150 | 150 | 15 |
WH.HFK.2525 | 250 | 250 | 15 |
