FLOOR STANDING ENCLOSURES - PHI. Series

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

MATERIAL	FLOOR STANDING MODULAR ENCLOSURE
BODY	GALVANIZED	FVZS 250 GD + Z140MAC
MOUNTING PLATE	GALVANIZED	DIN EN 10142-00 (Zn COATED) DX51DZ
COATING	EPOXY POLYESTER POWDER COATING	RAL 7035-7015
SURFACE TREATMENT	COATING
GASKET	POLYURETHANE SEALING FOAM GASKET
PROTECTION CLASS	IP 55

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.4124	400	1200	<	100
PHI.4125	400	1200	500	100
PHI.4126	400	1200	600	100
PHI.4127	400	1200	700	100
PHI.4128	400	1200	800	100
PHI.4164	400	1600	400	100
PHI.4165	400	1600	500	100
PHI.4166	400	1600	600	100
PHI.4167	400	1600	700	100
PHI.4168	400	1600	800	100
PHI.4184	400	1800	400	100
PHI.4185	400	1800	500	100
PHI.4186	400	1800	600	100
PHI.4187	400	1800	700	100
PHI.4188	400	1800	800	100
PHI.4204	400	2000	400	100
PHI.4205	400	2000	500	100
PHI.4206	400	2000	600	100
PHI.4207	400	2000	700	100
PHI.4208	400	2000	800	100
PHI.4224	400	2200	400	100
PHI.4225	400	2200	500	100
PHI.4226	400	2200	600	100
PHI.4227	400	2200	700	100
PHI.4228	400	2200	800	100

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.6124	600	1200	400	100
PHI.6125	600	1200	500	100
PHI.6126	600	1200	600	100
PHI.6127	600	1200	700	100
PHI.6128	600	1200	800	100
PHI.6164	600	1600	400	100
PHI.6165	600	1600	500	100
PHI.6166	600	1600	600	100
PHI.6167	600	1600	700	100
PHI.6168	600	1600	800	100
PHI.6184	600	1800	400	100
PHI.6185	600	1800	500	100
PHI.6186	600	1800	600	100
PHI.6187	600	1800	700	100
PHI.6188	600	1800	800	100
PHI.6204	600	2000	400	100
PHI.6205	600	2000	500	100
PHI.6206	600	2000	600	100
PHI.6207	600	2000	700	100
PHI.6208	600	2000	800	100
PHI.6224	600	2200	400	100
PHI.6225	600	2200	500	100
PHI.6226	600	2200	600	100
PHI.6227	600	2200	700	100
PHI.6228	600	2200	800	100

1 pcs panel frame, 1 pcs solid door, 1 pcs solid rear door, 1 pcs solid roof, 1 pcs set of H100mm plinth, 1 pcs rod latch lock and fasteners are included tı reference.
* Couple of side panel and mounting plate are optional.

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.7124	700	1200	400	100
PHI.7125	700	1200	500	100
PHI.7126	700	1200	600	100
PHI.7127	700	1200	700	100
PHI.7128	700	1200	800	100
PHI.7164	700	1600	400	100
PHI.7165	700	1600	500	100
PHI.7166	700	1600	600	100
PHI.7167	700	1600	700	100
PHI.7168	700	1600	800	100
PHI.7184	700	1800	400	100
PHI.7185	700	1800	500	100
PHI.7186	700	1800	600	100
PHI.7187	700	1800	700	100
PHI.7188	700	1800	800	100
PHI.7204	700	2000	400	100
PHI.7205	700	2000	500	100
PHI.7206	700	2000	600	100
PHI.7207	700	2000	700	100
PHI.7208	700	2000	800	100
PHI.7224	700	2200	400	100
PHI.7225	700	2200	500	100
PHI.7226	700	2200	600	100
PHI.7227	700	2200	700	100
PHI.7228	700	2200	800	100

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.8124	800	1200	400	100
PHI.8125	800	1200	500	100
PHI.8126	800	1200	600	100
PHI.8127	800	1200	700	100
PHI.8128	800	1200	800	100
PHI.8164	800	1600	400	100
PHI.8165	800	1600	500	100
PHI.8166	800	1600	600	100
PHI.8167	800	1600	700	100
PHI.8168	800	1600	800	100
PHI.8184	800	1800	400	100
PHI.8185	800	1800	500	100
PHI.8186	800	1800	600	100
PHI.8187	800	1800	700	100
PHI.8188	800	1800	800	100
PHI.8204	800	2000	400	100
PHI.8205	800	2000	500	100
PHI.8206	800	2000	600	100
PHI.8207	800	2000	700	100
PHI.8208	800	2000	800	100
PHI.8224	800	2200	400	100
PHI.8225	800	2200	500	100
PHI.8226	800	2200	600	100
PHI.8227	800	2200	700	100
PHI.8228	800	2200	800	100

1 pcs panel frame, 1 pcs solid door, 1 pcs solid rear door, 1 pcs solid roof, 1 pcs set of H100mm plinth, 1 pcs rod latch lock and fasteners are included tı reference.
* Couple of side panel and mounting plate are optional.

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.8124	800	1200	400	100
PHI.8125	800	1200	500	100
PHI.8126	800	1200	600	100
PHI.8127	800	1200	700	100
PHI.8128	800	1200	800	100
PHI.8164	800	1600	400	100
PHI.8165	800	1600	500	100
PHI.8166	800	1600	600	100
PHI.8167	800	1600	700	100
PHI.8168	800	1600	800	100
PHI.8184	800	1800	400	100
PHI.8185	800	1800	500	100
PHI.8186	800	1800	600	100
PHI.8187	800	1800	700	100
PHI.8188	800	1800	800	100
PHI.8204	800	2000	400	100
PHI.8205	800	2000	500	100
PHI.8206	800	2000	600	100
PHI.8207	800	2000	700	100
PHI.8208	800	2000	800	100
PHI.8224	800	2200	400	100
PHI.8225	800	2200	500	100
PHI.8226	800	2200	600	100
PHI.8227	800	2200	700	100
PHI.8228	800	2200	800	100

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.10124	1000	1200	400	100
PHI.10125	1000	1200	500	100
PHI.10126	1000	1200	600	100
PHI.10127	1000	1200	700	100
PHI.10128	1000	1200	800	100
PHI.10164	1000	1600	400	100
PHI.10165	1000	1600	500	100
PHI.10166	1000	1600	600	100
PHI.10167	1000	1600	700	100
PHI.10168	1000	1600	800	100
PHI.10184	1000	1800	400	100
PHI.10185	1000	1800	500	100
PHI.10186	1000	1800	600	100
PHI.10187	1000	1800	700	100
PHI.10188	1000	1800	800	100
PHI.10204	1000	2000	400	100
PHI.10205	1000	2000	500	100
PHI.10206	1000	2000	600	100
PHI.10207	1000	2000	700	100
PHI.10208	1000	2000	800	100
PHI.10224	1000	2200	400	100
PHI.10225	1000	2200	500	100
PHI.10226	1000	2200	600	100
PHI.10227	1000	2200	700	100
PHI.10228	1000	2200	800	100

1 pcs panel frame, 1 pcs solid door, 1 pcs solid rear door, 1 pcs solid roof, 1 pcs set of H100mm plinth, 1 pcs rod latch lock and fasteners are included tı reference.
* Couple of side panel and mounting plate are optional.

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

REFERENCE	W	H	D	H1
PHI.12124	1200	1200	400	100
PHI.12125	1200	1200	500	100
PHI.12126	1200	1200	600	100
PHI.12127	1200	1200	700	100
PHI.12128	1200	1200	800	100
PHI.12164	1200	1600	400	100
PHI.12165	1200	1600	500	100
PHI.12166	1200	1600	600	100
PHI.12167	1200	1600	700	100
PHI.12168	1200	1600	800	100
PHI.12184	1200	1800	400	100
PHI.12185	1200	1800	500	100
PHI.12186	1200	1800	600	100
PHI.12187	1200	1800	700	100
PHI.12188	1200	1800	800	100
PHI.12204	1200	2000	400	100
PHI.12205	1200	2000	500	100
PHI.12206	1200	2000	600	100
PHI.12207	1200	2000	700	100
PHI.12208	1200	2000	800	100
PHI.12224	1200	2200	400	100
PHI.12225	12000	2200	500	100
PHI.12226	1200	2200	600	100
PHI.12227	1200	2200	700	100
PHI.12228	1200	2200	800	100

CALL US

FLOOR STANDING ENCLOSURES – PHI Series

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

PHI. SERIES FLOOR STANDING MODULAR ENCLOSURE

Related posts

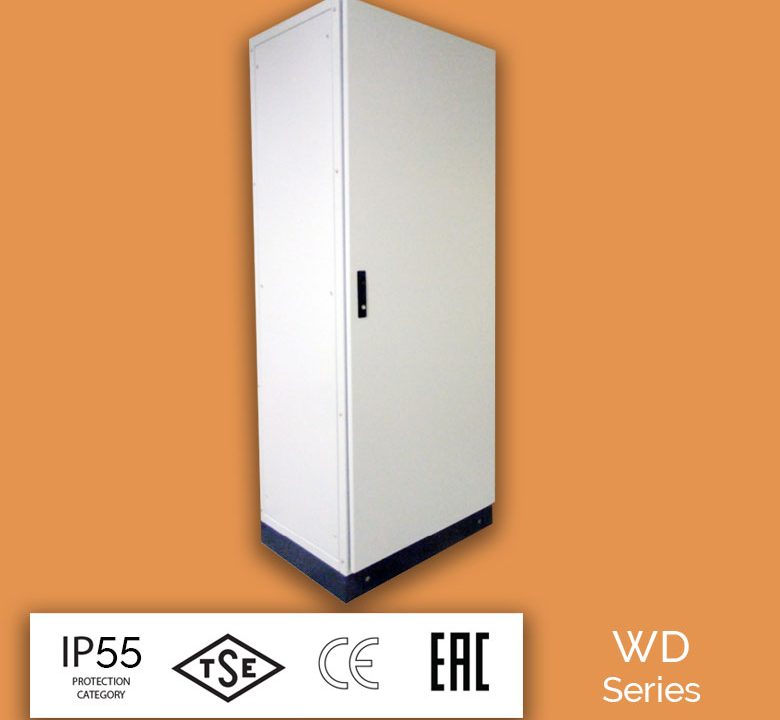

FLOOR STANDING ENCLOSURES – WD Series
