Control desk enclosure is a pult type panel that using for control machine and automation systems. In the WP1 series, mounting plate is located on back panel of control desk for maximize the useable area. Inclined top surface has usable area for joysticks, industrial keyboard, signal buttons. Top surface is open able thanks to two hydraulic pistons that located on left and right sides of body.
WP1. SERIES CONTROL DESK ENCLOSURE
| MATERIAL | CONTROL DESK ENCLOSURE | |
|---|---|---|
| BODY | SHEET METAL | DC1/DIN EN 10130-99 (COLD) |
| MOUNTING PLATE | GALVANIZED | DIN EN 10142-00 (Zn COATED) DX51DZ |
| COATING | EPOXY POLYESTER POWDER COATING | RAL 7035-7015 |
| SURFACE TREATMENT | COATING | |
| GASKET | POLYURETHANE SEALING FOAM GASKET | |
| PROTECTION CLASS | IP 55 | |
WP1. SERIES SINGLE MOUNTING PLATE CONTROL DESK ENCLOSURE
| REFERENCE | W | H | D | H1 | D1 |
|---|---|---|---|---|---|
| WP1.635 | 600 | 1030 | 350 | 100 | 478 |
| WP1.835 | 800 | 1030 | 350 | 100 | 478 |
| WP1.1035 | 1000 | 1030 | 350 | 100 | 478 |
| WP1.1235 | 1200 | 1030 | 350 | 100 | 478 |
The reference includes 1 body, 1 front door, 1 top cover, 1 mounting plate, 1 bottom cover set, 1 H / 100 plinth set, and fasteners.
WP1. SERIES AREA OF USAGE OF TOP PLATE
| W | D | W1 | D1 |
|---|---|---|---|
| 600 | 473 | 535 | 365 |
| 800 | 473 | 735 | 365 |
| 1000 | 473 | 935 | 365 |
| 1200 | 473 | 1135 | 365 |

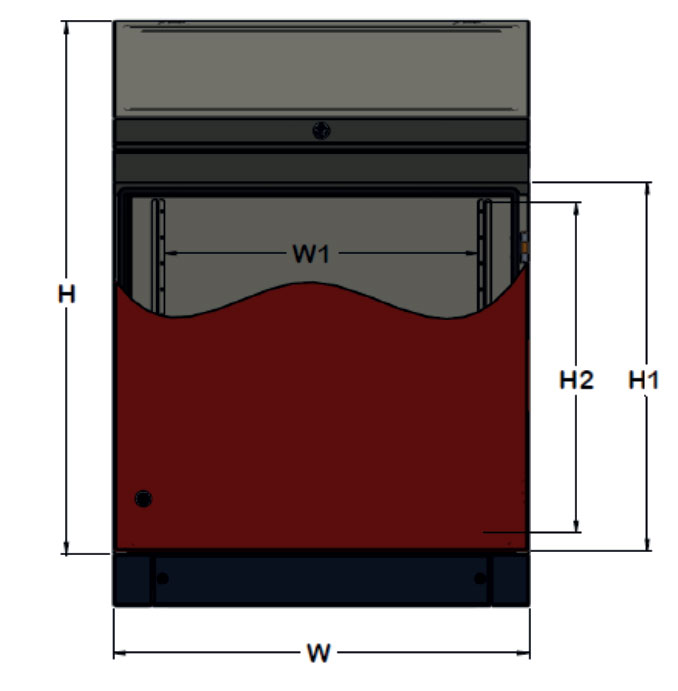

WP1. SERIES AREA OF USAGE OF FRONT DOOR
| W | H | W1 | H1 | H2 |
|---|---|---|---|---|
| 600 | 1030 | 413 | 700 | 660 |
| 800 | 1030 | 613 | 700 | 660 |
| 1000 | 1030 | 813 | 700 | 660 |
| 1200 | 1030 | 1013 | 700 | 660 |

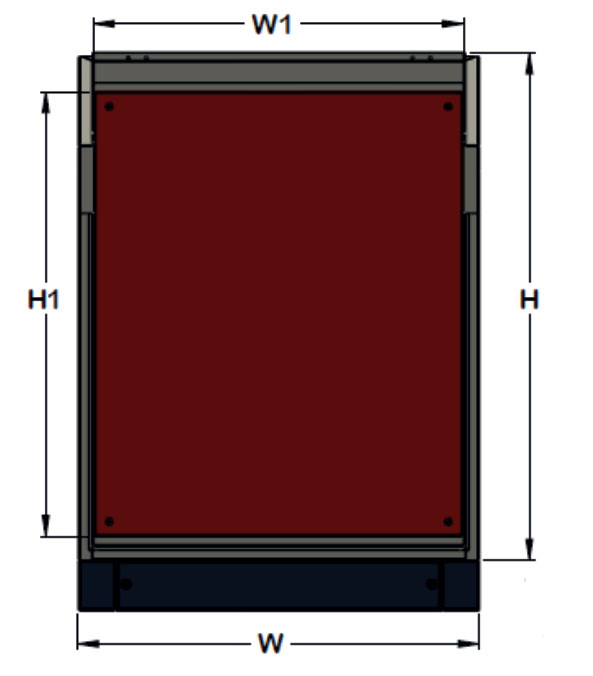

WP1. SERIES AREA OF UASAGE MOUNTING PLATE
| REFERENCE | W | H | W1 | H1 |
|---|---|---|---|---|
| WP1.MP.6 | 600 | 1030 | 531,5 | 880 |
| WP1.MP.8 | 800 | 1030 | 731,5 | 880 |
| WP1.MP.10 | 1000 | 1030 | 931,5 | 880 |
| WP1.MP.12 | 1200 | 1030 | 1131,5 | 880 |
