Product Application
RACK CABINETS (19” Rack cabinets), especially using in the sector of IT. For the provide free moving ability, plate fitting and fixed fitting castors are using. The equipments of rack cabinets is roof with ventilation slots, one for each solid and glazed door, gland plate, two 19” rack mounting profile sand two side panels. In the situation of customer request 100 mm height plint hand four 19” rack mounting profiles are Exchange able with cast or Wheel sand two 19” rack mounting profiles. Movable and immovable shelfs are perfect solution in rack cabinet sand in some models mounting plate is used in rack cabinets. Vertical profile of internal plates in a rack cabinet is avaliable with two doors.
WR. SERIES 19'' RACK CABINET
| MATERIAL | 19'' RACK CABINET | |
|---|---|---|
| BODY | SHEET METAL | DC1/DIN EN 10130-99 (COLD) |
| MOUNTING PLATE | GALVANIZED | DIN EN 10142-00 (Zn COATED) DX51DZ |
| COATING | EPOXY POLYESTER POWDER COATING | RAL 7035 |
| SURFACE TREATMENT | COATING | |
| GASKET | POLYURETHANE SEALING FOAM GASKET | |
| PROTECTION CLASS | IP 66 | |
WR. SERIES DIMENSION OF RC SERIES
| REFERENCE | W | H | D | U |
|---|---|---|---|---|
| WR.6126 | 600 | 1200 | 600 | 24 |
| WR.6128 | 600 | 1200 | 800 | 24 |
| WR.8126 | 800 | 1200 | 600 | 24 |
| WR.8128 | 800 | 1200 | 800 | 24 |
| WR.6166 | 600 | 1600 | 600 | 33 |
| WR.6168 | 600 | 1600 | 800 | 33 |
| WR.8166 | 800 | 1600 | 600 | 33 |
| WR.8168 | 800 | 1600 | 800 | 33 |
| WR.6186 | 600 | 1800 | 600 | 40 |
| WR.6188 | 600 | 1800 | 800 | 40 |
| WR.8186 | 800 | 1800 | 600 | 40 |
| WR.8188 | 800 | 1800 | 800 | 40 |
| WR.6206 | 600 | 2000 | 600 | 42 |
| WR.6208 | 600 | 2000 | 800 | 42 |
| WR.8206 | 800 | 2000 | 600 | 42 |
| WR.8208 | 800 | 2000 | 800 | 42 |
A frame of rack cabinet, a glazed front door, a solid rear door, gland plate, two knitted grounding cables, two rod latch locks are included to reference.
WR. SERIES IMMOVABLE SHELF
| REFERENCE | W | D |
|---|---|---|
| WR.SR.66 | 600 | 600 |
| WR.SR.68 | 600 | 600 |
| WR.SR.86 | 800 | 800 |
| WR.SR.88 | 800 | 800 |
An immovable shelf and fasteners are included to reference.

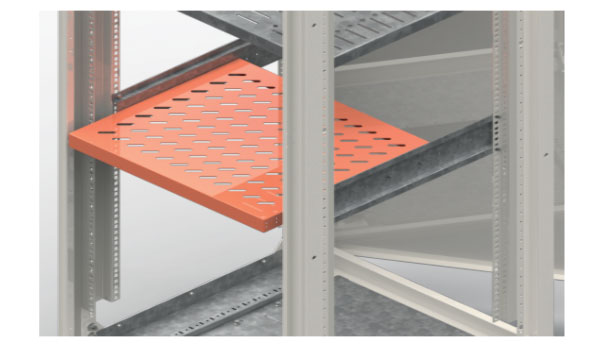

WR. SERIES MOVABLE SHELF
| REFERENCE | W | D |
|---|---|---|
| WR.SR.66 | 600 | 600 |
| WR.SR.68 | 600 | 800 |
| WR.SR.86 | 800 | 600 |
| WR.SR.88 | 800 | 800 |
A movable shelf, two linear sleds and fasteners are included to reference.
