STAINLESS - WM Series

Product Application

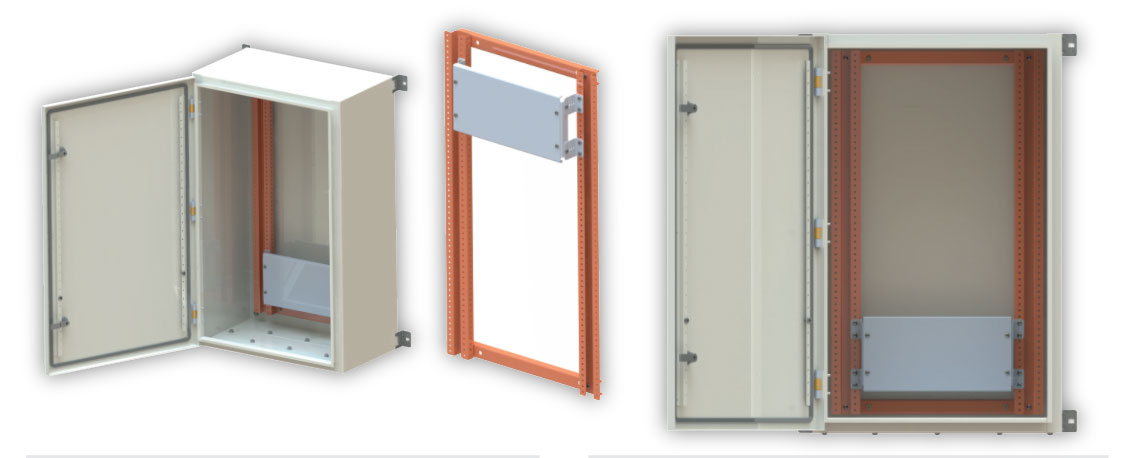

WALL MOUNTED ENCLOSURES
Wall mounted enclosures have been widely used in market. This is generally for low amper electricity. Mounting plate and internal lid are in the list of accessories. One of these accessories is completely defined in offer for that reason. Monoblock body and selaing foam gasket are provided reach to certifcate of IP66 protection class.

WM SERIES WALL MOUNT TYPE MONOBLOCK BOXES

MATERIAL	WALL MOUNT TYPE MONOBLOCK BOXES
BODY	SHEET METAL	DC1/DIN EN 10130-99 (COLD) DC1
MOUNTING PLATE	GALVANIZED	DC1/DIN EN 10130-99 (COLD) DC1
COATING	EPOXY POLYESTER POWDER COATING	RAL 735
SURFACE TREATMENT	COATING
GASKET	POLYURETHANE SEALING FOAM GASKET
PROTECTION CLASS	IP 66

WM SERIES WALL MOUNT TYPE MONOBLOK BOXES

REFERENCE	W	H	D
WM.332M	300	300	200
WM.342M	300	400	200
WM.352M	300	500	200
WM.353M	300	500	300
WM.432M	400	300	200
WM.442M	400	400	200
WM.452M	400	500	200
WM.453M	400	500	200
WM.462M	400	600	200
WM.463M	400	600	300
WM.552M	500	500	200
WM.562M	500	600	200
WM.563M	500	600	300
WM.332M	500	700	200
WM.573M	500	700	300
WM.582M	500	800	200
WM.583M	500	800	300
WM.642M	600	400	300
WM.643M	600	400	300
WM.682M	600	800	200
WM.683M	600	800	300
WM.6103M	600	1000	300
WM.6123M	600	1200	300
WM.7102M	700	1000	200
WM.7103M	700	1200	300
WM.882M	800	800	200
WM.883M	800	800	300
WM.8123M	800	1200	300
WM.1082M	1000	800	200
WM.1083M	1000	800	300
WM.10103M	1000	1000	300
WM.10123M	1000	1200	300

1 pcs body, 1 pcs bottom entrance plate, 1 pcs solid door, 1 pcs knitted grounding cable, 1 pcs key of panel, 4 pcs wall mounted brackets and fasteners are included to reference.

* Mounting plate is optional.

SOLID FONT DOOR

REFERENCE	W	H	W1	H1
WM.KP.33	300	300	146	239
WM.KP.34	300	400	146	339
WM.KP.43	400	300	246	239
WM.KP.44	400	400	246	339
WM.KP.45	400	500	246	439
WM.KP.46	400	600	246	539
WM.KP.55	500	500	346	439
WM.KP.56	500	600	346	539
WM.KP.57	500	700	346	639
WM.KP.610	600	1000	446	939
WM.KP.64	600	400	446	339
WM.KP.66	600	600	446	539
WM.KP.68	600	800	646	739
WM.KP.88	800	800	446	739
WM.KP.1010	1000	1000	403X2	939
WM.KP.1012	1000	1200	403X2	1139
WM.KP.108	1000	800	403X2	739
WM.KP.612	600	1200	446	1139
WM.KP.810	800	1000	646	939
WM.KP.812	800	1200	646	1139

WM. SERIES BOTTOM ENTRANCE PLATE

REFERENCE	W	D	W1	D1
WM.AK.32	300	200	172	108
WM.AK.42	400	200	372	108
WM.AK.43	400	300	372	108
WM.AK.52	500	200	372	108
WM.AK.53	500	300	372	108
WM.AK.62	600	200	472	108
WM.AK.63	600	300	472	108
WM.AK.82	800	200	672	108
WM.AK.83	800	300	672	108
WM.AK.102	1000	200	872	108
WM.AK.103	1000	300	872	108

WM. SERIES GLAZED FRONT DOOR

REFERENCE	W	H	W1	H1
YM.WM.CKP.3030-50	300	300	146	239
YM.WM.CKP.3040-50	300	400	146	339
YM.WM.CKP.4040-50	400	400	246	339
YM.WM.CKP.4050-50	400	500	246	439
YM.WM.CKP.4060-50	400	600	246	539
YM.WM.CKP.5050-50	500	500	346	439
YM.WM.CKP.5060-50	500	600	346	539
YM.WM.CKP.5070-50	500	700	346	639
YM.WM.CKP.6060-50	600	600	446	539
YM.WM.CKP.6080-50	600	800	446	739
YM.WM.CKP.6100-50	600	1000	446	939
YM.WM.CKP.6120-50	600	1200	446	1139
YM.WM.CKP.8080-50	800	800	646	739
YM.WM.CKP.8100-50	800	1000	646	939
YM.WM.CKP.8120-50	800	1200	646	11939

WM. SERIES CABLE DUCT MOUNTING PROFILE

REFERENCE	W	W1	H1
WM.KP.3G	300	146	22,4
WM.KP-4G	400	246	22,4
WM.KP-5G	500	346	22,4
WM.KP-6G	600	446	22,4
WM.KP-8G	800	646	22,4

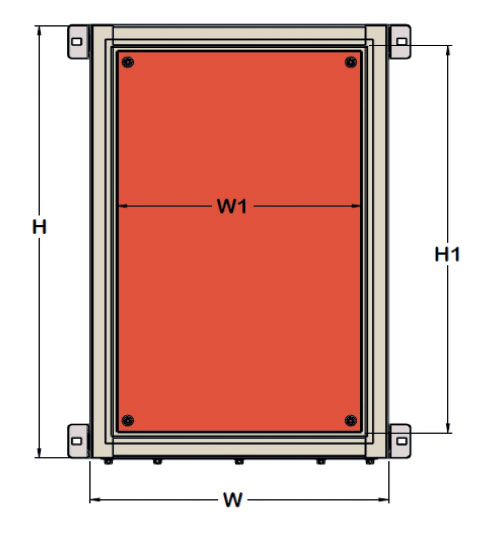

WM. SERIES MOUNTING PLATE

REFERENCE	W	H	W1	H1
WM.MP.33	300	300	227,6	227,6
WM.MP.34	300	400	227,6	227,6
WM.MP.43	400	300	327,6	327,6
WM.MP.44	400	400	327,6	327,6
WM.MP.45	400	500	327,6	327,6
WM.MP.46	400	600	327,6	527,6
WM.MP.55	500	500	427,6	427,6
WM.MP.56	500	600	427,6	527,6
WM.MP.57	500	700	427,6	627,6
WM.MP.610	600	1000	527,6	927,6
WM.MP.64	600	400	527,6	327,6
WM.MP.66	600	600	527,6	527,6
WM.MP.68	600	800	527,6	727,6
WM.MP.88	800	800	727,6	727,6
WM.MP.1010	1000	1000	927,6	927,6
WM.MP.1012	1000	1200	927,6	1127,6
WM.MP.108	1000	800	927,6	727,6
WM.MP.612	600	1200	527,6	1127,6
WM.MP.810	800	1000	727,6	927,6
WM.MP.812	800	1200	727,6	1127,6

1pcs mounting plate and fasteners are included to reference.

WM. SERIES FULL SIXE SOLID INTERNAL PLATE

REFERENCE	W	H	W1	H1
WM.M.TPK.33	300	300	235	237
WM.M.TPK.34	300	400	235	337
WM.M.TPK.44	400	400	335	337
WM.M.TPK.45	400	500	335	437
WM.M.TPK.46	400	600	335	537
WM.M.TPK.55	500	500	435	437
WM.M.TPK.56	500	600	435	537
WM.M.TPK.57	500	700	435	637
WM.M.TPK.66	600	600	535	537
WM.M.TPK.68	600	800	535	737
WM.M.TPK.610	600	1000	535	937
WM.M.TPK.46	600	1200	535	1137
WM.M.TPK.47	800	800	735	737
WM.M.TPK.48	800	1000	735	937
WM.M.TPK.49	800	1200	735	1137
WM.M.TPK.50	1000	800	935	737
WM.M.TPK.51	1000	1000	935	937

1pcs totally solid internal plate, 2 pcs hinges, two quarter turn-wing knob locks and fasteners are included to reference.
* For over the height of 700mm, three hinges, three quarter turn-wing knob locks are included to reference.

WM. SERIES FULL SIZE W-AUTOMAT INTERNAL PLATE

REFERENCE	W	H	W1	H1	W2	SIRA	OTO (1 SIRA İÇİN)
WM.TWK.33	300	300	235	237	188	2	9
WM.TWK.34	300	400	237	337	188	3	9
WM.TWK.43	400	300	335	237	238	2	15
WM.TWK.44	400	400	335	3367	288	3	15
WM.TWK.45	400	500	335	437	288	4	15
WM.TWK.46	400	600	335	537	288	5	15
WM.TWK.55	500	500	438	437	388	4	20
WM.TWK.56	500	600	437	537	388	5	20
WM.TWK.57	500	700	435	637	377	6	20
WM.TWK.610	600	1000	535	937	488	9	26
WM.TWK.64	600	400	535	337	488	3	26
WM.TWK.66	600	600	535	537	488	9	26
WM.TWK.68	600	800	535	737	488	7	26
WM.TWK.88	800	800	735	737	688	7	37
WM.TWK.810	800	1000	735	937	688	9	37
WM.TWK.812	800	1200	735	1137	688	11	37
WM.TWK.108	1000	800	935	737	888	7	48
WM.TWK.1010	1000	1000	935	937	888	9	48

1pcs totally w-automat internal plate, 2 pcs hinges, two quarter turn-wing knob locks and fasteners are included to reference.
* For over the height of 700mm, three hinges, three quarter turn-wing knob locks are included to reference.

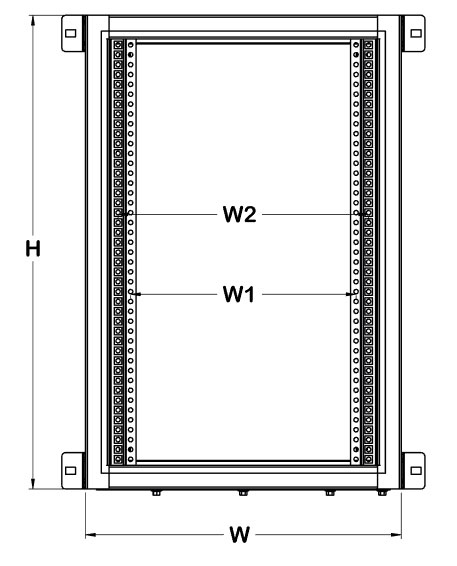

WM. SERIES INTERNAL MOUNTING KITS

REFERENCE	W	H	W1	W2	H1	D1	D2
WM.İMS.33	300	300	185,6	217,5	290	63,2	28
WM.İMS.34	300	400	185,6	217,5	390	63,2	28
WM.İMS.43	400	300	285,6	317,5	290	63,2	28
WM.İMS.44	400	400	285,6	317,5	390	63,2	28
WM.İMS.45	400	500	285,6	317,5	490	63,2	28
WM.İMS.46	400	600	285,6	317,5	590	63,2	28
WM.İMS.55	500	500	385,6	417,5	490	63,2	28
WM.İMS.56	500	600	385,6	417,5	590	63,2	28
WM.İMS.57	500	700	385,6	417,5	690	63,2	28
WM.İMS.610	600	1000	485,6	517,5	990	63,2	28
WM.İMS.64	600	400	485,6	517,5	390	63,2	28
WM.İMS.66	600	600	485,6	517,5	590	63,2	28
WM.İMS.68	600	800	485,6	517,5	790	63,2	28
WM.İMS.612	600	1200	485,6	517,5	1190	63,2	28
WM.İMS.88	800	800	685,6	717,5	790	63,2	28
WM.İMS.810	800	1000	685,6	717,5	990	63,2	28
WM.İMS.812	800	1200	685,6	717,5	1190	63,2	28
WM.İMS.1010	1000	1000	885,6	917,5	990	63,2	28
WM.İMS.1012	1000	1200	885,6	917,5	1190	63,2	28
WM.İMS.108	1000	800	885,6	917,5	790	63,2	28

2 pcs vertical profiles of internal plate and fasteners are included to reference.

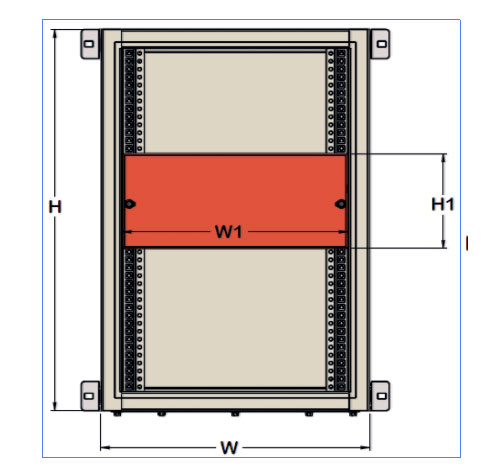

WM. SERIES PARTIAL SOLID INTERNAL PLATE

REFERENCE	W	H	W1	H1	H2
WM.PDK.3040	300	300	235,6	39	290
WM.PDK.3100	300	300	235,6	39	290
WM.PDK.3200	300	300	235,6	199	290
WM.PDK.3250	300	300	235,6	249	290
WM.PDK.4040	400	400	335,6	39	390
WM.PDK.4100	400	400	335,6	99	390
WM.PDK.4200	400	400	335,6	199	390
WM.PDK.4250	400	400	335,6	249	390
WM.PDK.5040	500	500	435,6	39	490
WM.PDK.5100	500	500	435,6	99	490
WM.PDK.5200	500	500	435,6	199	490
WM.PDK.5250	500	500	435,6	249	490
WM.PDK.6040	600	600	535,6	39	590
WM.PDK.6100	600	600	535,6	99	590
WM.PDK.6200	600	600	535,6	199	590
WM.PDK.6250	600	600	535,6	249	590
WM.PDK.8040	800	800	735,6	39	790
WM.PDK.8100	800	800	735,6	99	790
WM.PDK.8200	800	800	735,6	199	790
WM.PDK.8250	800	800	735,6	249	790
WM.PDK.1100	1000	1000	935,6	99	990
WM.PDK.1200	1000	1000	935,6	199	990
WM.PDK.1250	1000	1000	935,6	249	990

1pcs closed internal plate, and fasteners are included to reference.

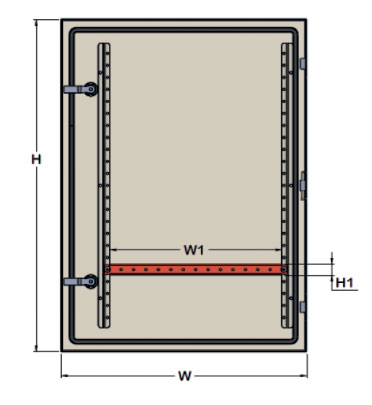

WM. SERIES PARTIAL W-AUTOMAT INTERNAL PLATE

REFERENCE	W	H	W1	H1	H2	OTO
WM.PWK.3150	300	235,6	88	149	47	10
WM.PWK.4150	400	335,6	188	149	47	16
WM.PWK.5150	500	435,6	288	149	47	21
WM.PWK.6150	600	535,6	388	149	47	27
WM.PWK.8150	800	735,6	488	149	47	38
WM.PWK.1150	1000	935,6	688	149	47	49

1pcs w-automat internal plate, and fasteners are included to reference.
